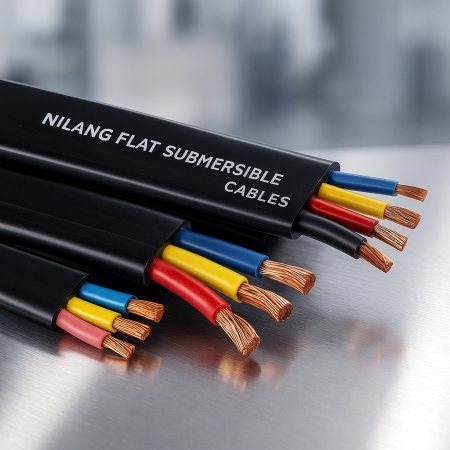

Submersible Flat Cables (Three Core) for Voltage up to 1100 V AC
3 CORE FLAT CABLES USED FOR SUBMERSIBLE PUMP MOTORS TECHNICAL SPECIFICATION AS PER IS:694:2010
| AREA SQ.MM (CONDUCTOR) |
NO. OF STRANDS DIA. MM(CONDUCTOR) | THICKNESS (NOM) MM(INSULATION) |
THICKNESS (NOM) MM(SHEATH) | WIDTH (APPROX) ‘W’ MM | WIDTH (APPROX) ‘H’ MM | CONDUCTOR RESISTANT @20 (MAX) OHMS/KM | SCURRENT CARRYING CAPACITY @40 AMPS |
|---|---|---|---|---|---|---|---|
| 1.50 | 22/0.3 | 0.60 | 0.90 | 12.00 | 5.60 | 13.30 | 14 |
| 2.50 | 36/0.3 | 0.70 | 1.00 | 14.00 | 6.40 | 7.98 | 18 |
| 4.0 | 56/0.3 | 0.80 | 1.00 | 16.50 | 7.40 | 4.95 | 26 |
| 6.0 | 84/0.3 | 1.00 | 1.15 | 18.70 | 7.90 | 3.30 | 31 |
| 10.0 | 140/0.3 | 1.00 | 1.40 | 23.70 | 9.90 | 1.91 | 42 |
| 16.0 | 226/0.3 | 1.00 | 1.40 | 28.00 | 11.40 | 1.21 | 57 |
| 25.0 | 354/0.3 | 1.20 | 2.00 | 35.50 | 14.70 | 0.780 | 52 |
| 35.0 | 495/0.3 | 1.40 | 2.00 | 35.50 | 16.20 | 0.554 | 90 |
| 50.0 | 703/0.3 | 1.40 | 2.20 | 45.50 | 18.30 | 0.386 | 115 |
| 70.0 | 360/0.5 | 1.40 | 2.20 | 51.00 | 20.00 | 0.272 | 143 |
| 95.0 | 475/0.5 | 1.60 | 2.40 | 60.00 | 23.50 | 0.206 | 165 |
